• 16" x 7" styled steel wheels
• P245/70R16 on/off road BSW tires
• Full size spare tire w/16" steel wheel & winch-type carrier
• Body color front fascia
• Body color rear bumper

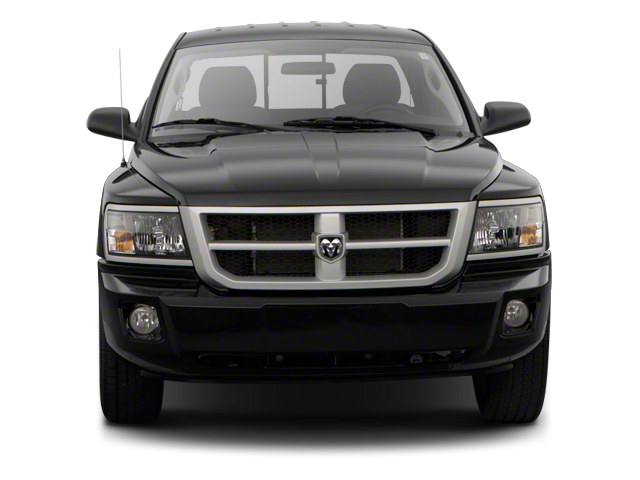

• Bright grille
• Chrome headlamp bezels w/chrome trim
• Fog lamps
• Tinted windshield glass
• Tinted glass windows
• Deep tint sunscreen glass
• Variable intermittent windshield wipers
• Dual position tailgate

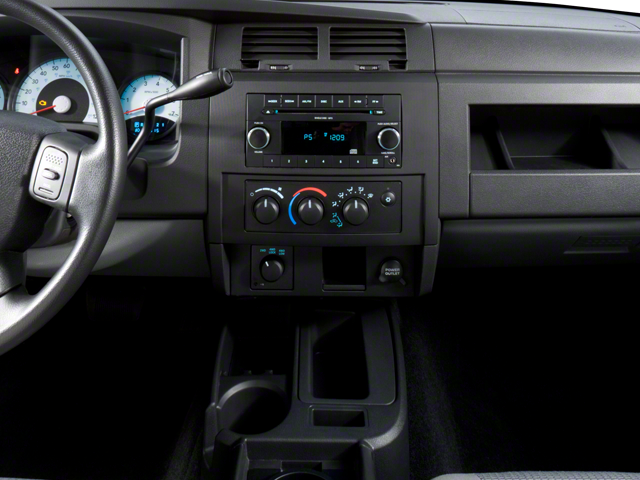

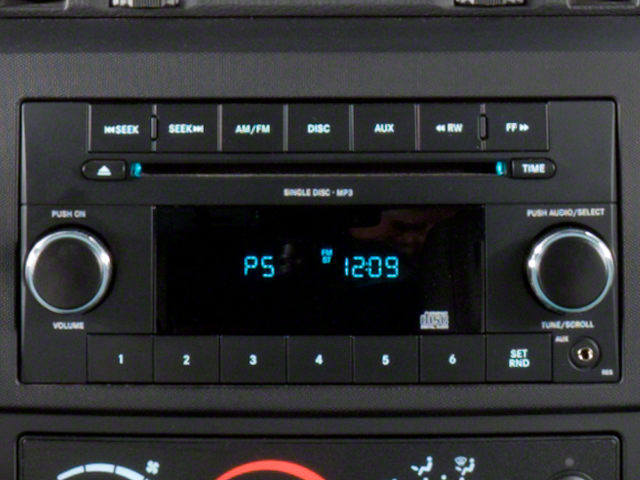

• Media Center 130 -inc: AM/FM stereo w/CD/MP3 player, (4) speakers
• Aux audio input

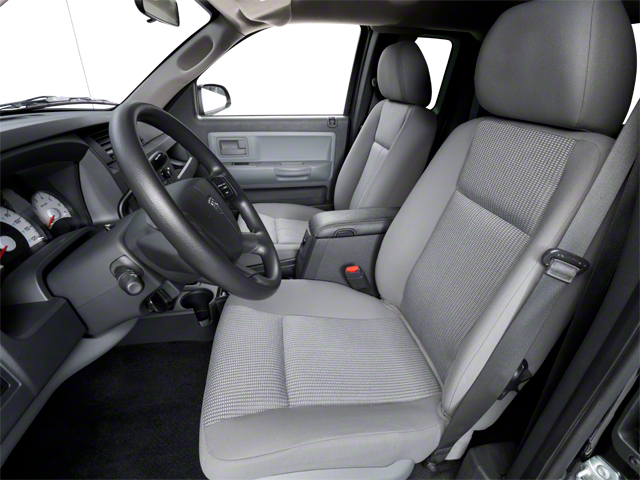

• Premium cloth front bucket seats
• Stain & odor resistant anti-static seat fabric

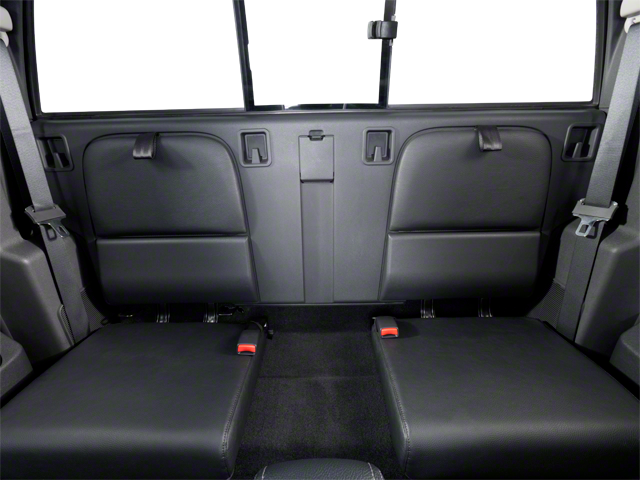

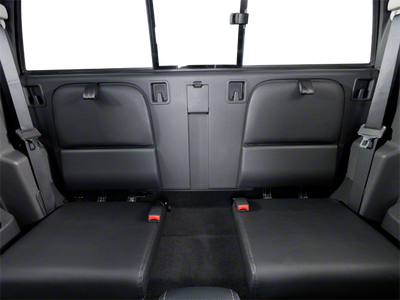

• 40/40 split folding rear bench seat

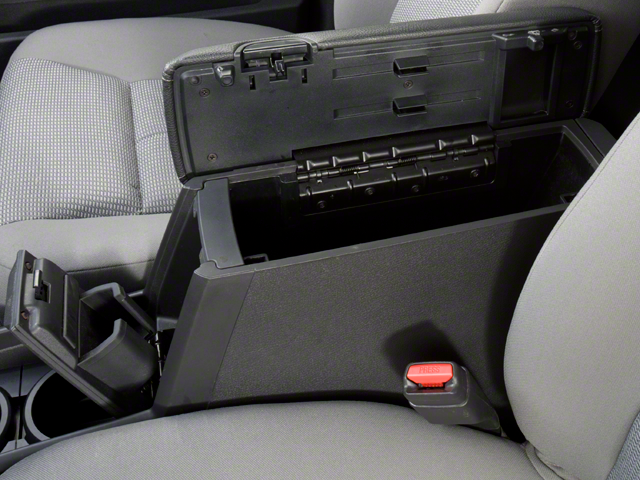

• Floor console
• 12V pwr point in floor console
• Front floor carpeting

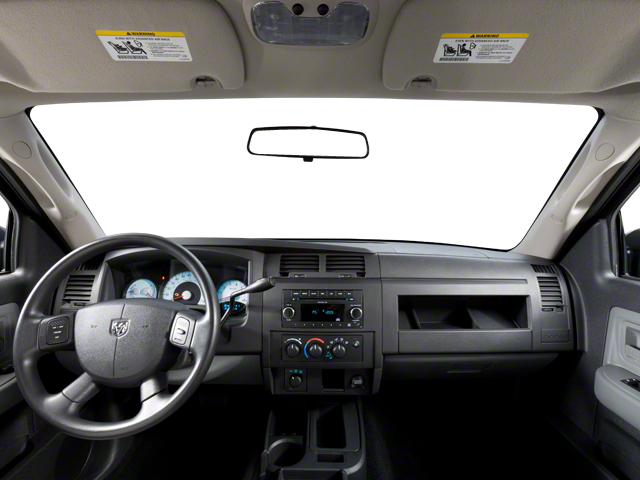

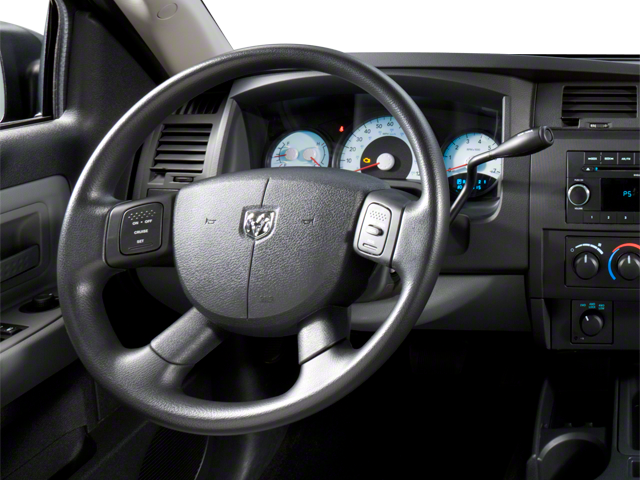

• Tilt steering column
• Instrument cluster w/tachometer
• Instrument panel black bezel
• Pwr accessory delay
• 120 MPH speedometer
• Door ajar warning lamp
• Headlamps on warning chimes
• Key in ignition & seat belt warning buzzer
• Tip start
• Air conditioning
• 12V pwr outlet in instrument panel
• Vinyl door trim panels w/map pocket
• Driver side sun visor
• Passenger side sun visor w/mirror
• Driver assist handle
• Passenger assist handle
• Map/dome reading lamps
• Rear dome lamp
• Rear seat grocery bag hooks

• 4-wheel anti-lock brakes
• Brake/park interlock
• Driver & front passenger airbags w/passenger sensor
• Supplemental front side air bags
• Supplemental front & rear side curtain air bags
• Tire pressure monitoring warning lamp
• Rear child safety door locks
• Dual note horn

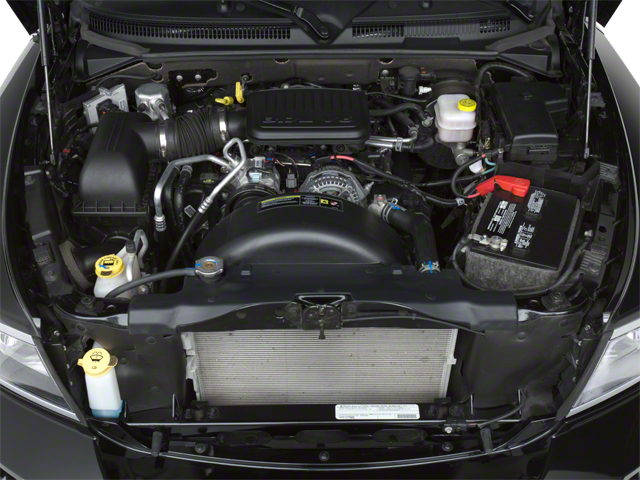

3.7L V6 ENGINE

• (STD)

• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 3600
• Curb Weight - Front (lbs): 2596
• Curb Weight - Rear (lbs): 1798
• Gross Vehicle Weight Rating Cap (lbs): 6010
• Gross Combined Wt Rating (lbs): 9300
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4750
• Dead Weight Hitch - Max Tongue Wt. (lbs): 475
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4750
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 713
• Suspension
• Suspension Type - Front: Upper/Lower "A" Arms
• Suspension Type - Rear: Live Axle
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 3850
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.3 x 1.1
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 2.3
• Tires
• Front Tire Order Code: TVF
• Rear Tire Order Code: TVF
• Spare Tire Order Code: WDQ
• Front Tire Size: P245/70R16
• Rear Tire Size: P245/70R16
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.0
• Fuel Tank Location: Inboard LH Frame
• Exterior Dimensions
• Wheelbase (in): 131.3
• Length, Overall w/o rear bumper (in): 218.5
• Width, Max w/o mirrors (in): 71.7
• Height, Overall (in): 68.6
• Overhang, Front (in): 38.4
• Overhang, Rear w/o bumper (in): 48.8
• Front Bumper to Back of Cab (in): 130.4
• Cab to Axle (in): 39.3
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 31.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 32.4
• Ground Clearance, Front (in): 7.9
• Ground Clearance, Rear (in): 8.0

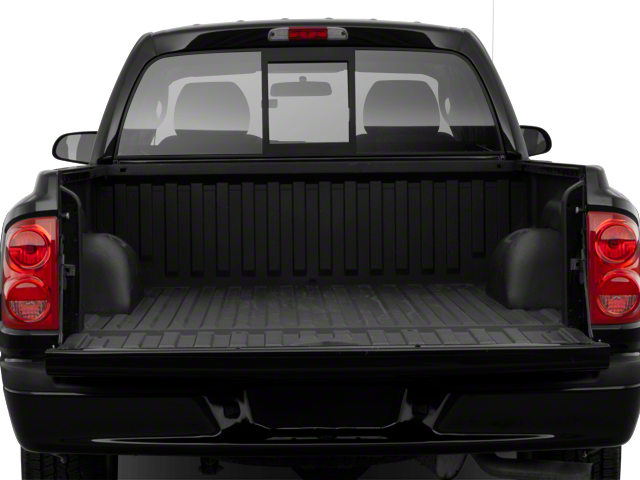

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 59.6
• Cargo Box Width @ Floor (in): 59.6
• Cargo Box Width @ Wheelhousings (in): 45.2
• Cargo Box (Area) Height (in): 17.6
• Tailgate Width (in): 53.3
• Cargo Volume (ft³): 46.6
• Ext'd Cab Cargo Volume (ft³): 30.0
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 39.6
• Front Leg Room (in): 41.9
• Front Shoulder Room (in): 57.7
• Front Hip Room (in): 54.9
• Second Head Room (in): 36.5
• Second Leg Room (in): 32.1
• Second Shoulder Room (in): 57.4
• Second Hip Room (in): 56.9

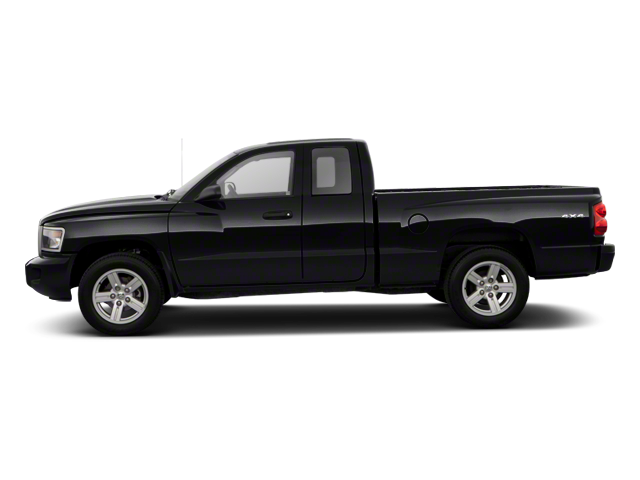

• Summary
• Vehicle Name: Ram Dakota
• Body Style: Extended Cab 6'6" Bed
• Body Code: 131.3" WB
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
